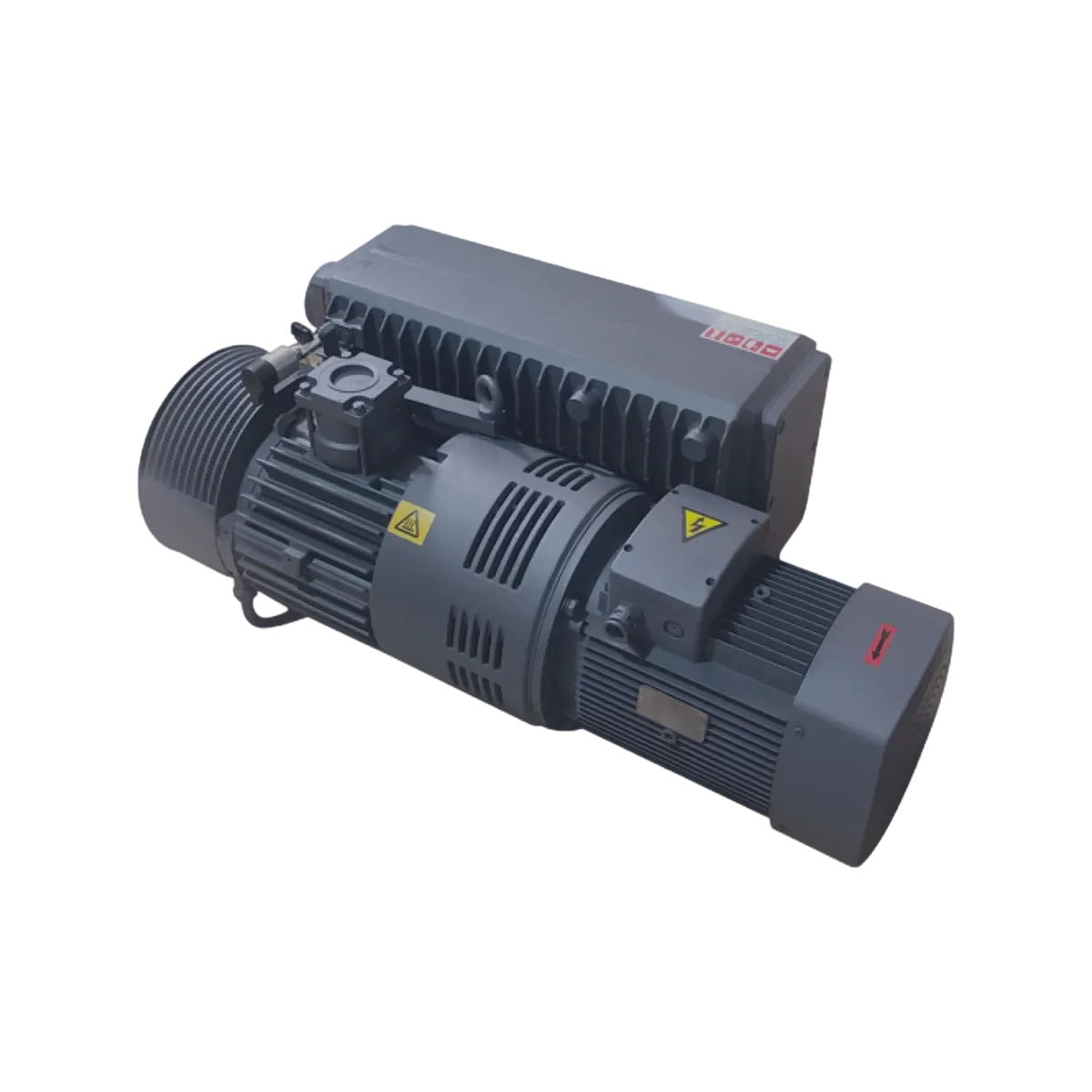

REICH OV0202 – OV0302 oil-lubricated rotary vane vacuum pumps
Oil-lubricated vane pump for efficient industrial vacuum.
1,00 €
Request more details about the product
The oil-lubricated vane vacuum pump works on the principle of rotating paddles. The oil seals the gap, lubricates the vanes and removes the heat of compression. The oil filter is used to clean the circulating oil. Exhaust filters separate the oil from the exhaust. Reich’s ov series oil-LUBRICATED rotary vane vacuum pumps are designed for a variety of applications such as vacuum packaging, food processing, pneumatic conveying and more. Reich rotary vane vacuum pumps stand out for their robustness and reliability. And these are just a few of the many reasons why Reich’s rotary vane technology has long been an industry benchmark.
Specifications:
| Model | Rated Flow (m³/h) | Maximum Vacuum (mbar) | Rated Motor Power (KW) | Speed (rpm) | Sound Level dB(A) | Oil Capacity (L) | Gas Inlet & Outlet | Approximate Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| OV 0202 | 240 | 0.5 | 4.4 | 1740 | 72 | 5 | G 2″ | 140 |
| OV 0302 | 360 | 0.5 | 7.5 | 1740 | 75 | 6.5 | G 2″ | 190 |
| Model | L (mm) | H (mm) | B (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|
| OV 0202 | 850 | 407 | 485 | 234 | 305 | 390 |
| OV 0302 | 960 | 407 | 540 | 303 | 350 | 390 |
Add a review
REICH OV0202 - OV0302 oil-lubricated rotary vane vacuum pumps
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
RELATED PRODUCTS
1,00 €
SKU:

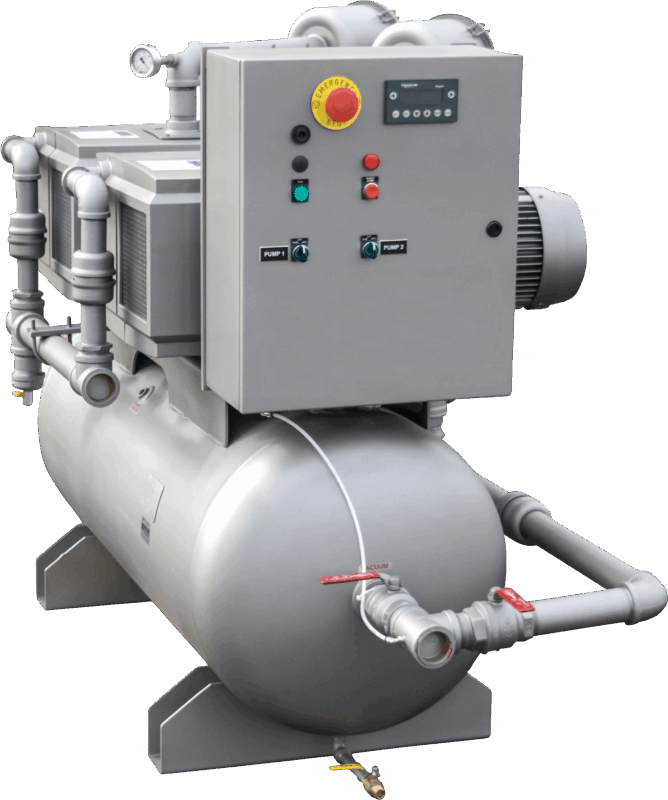

COV 25
1,00 €
SKU:

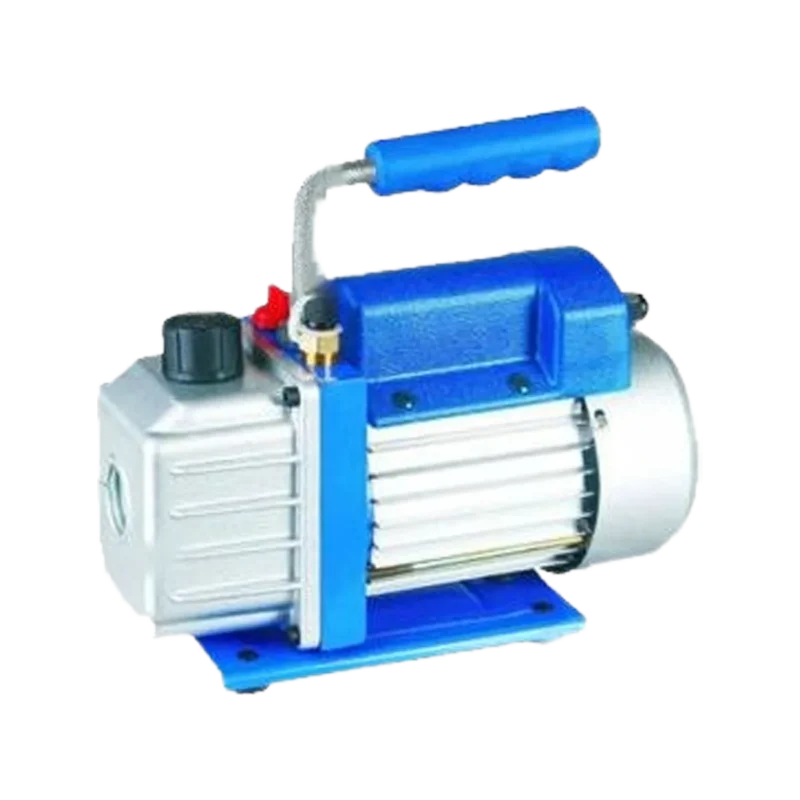

RS-0.5 - 2RS-5
1,00 €
SKU:

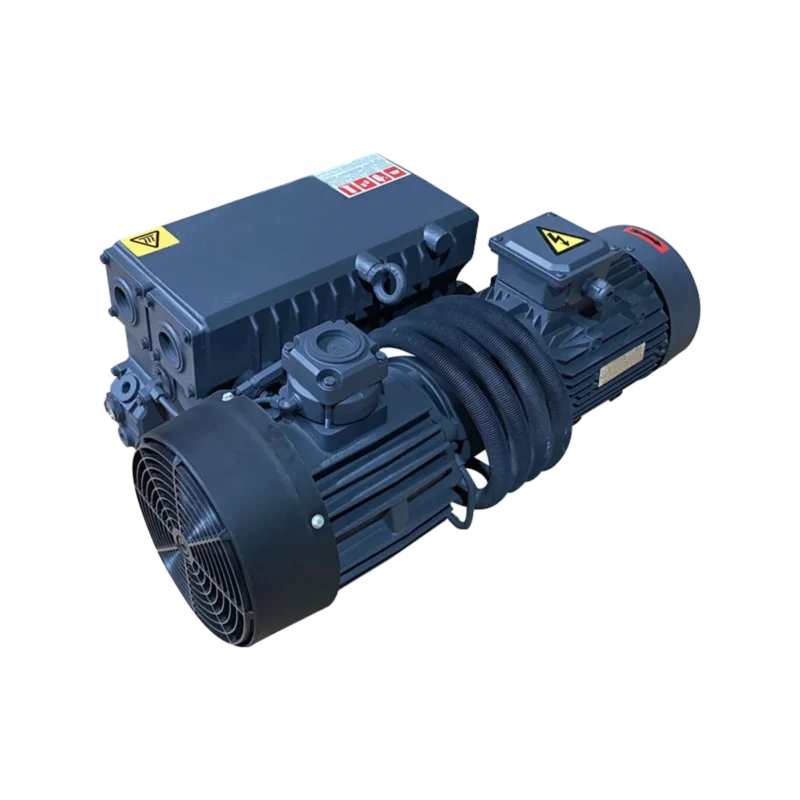

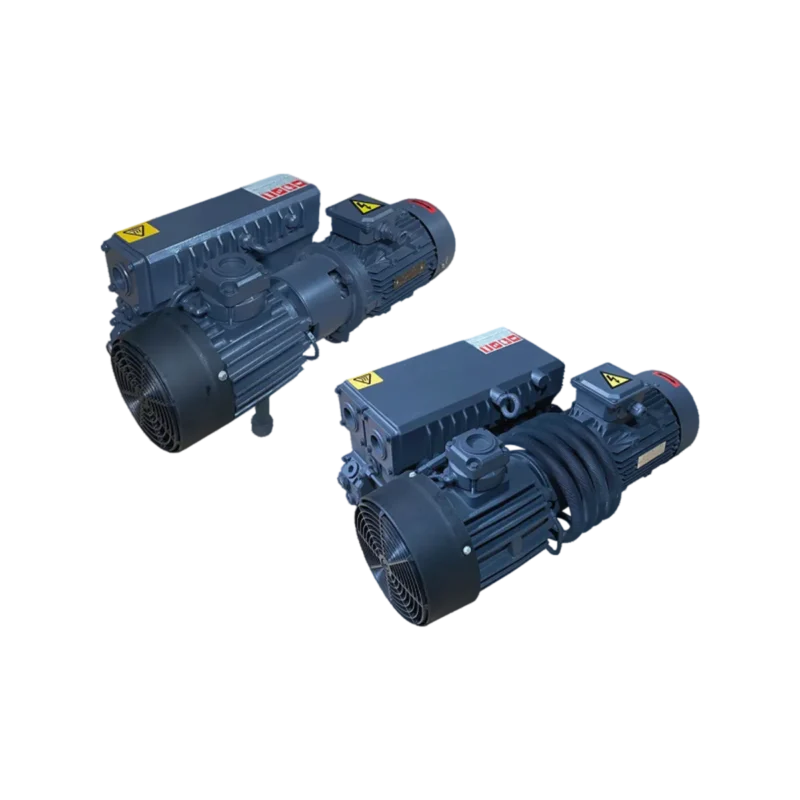

OV0040 - OV 0100
1,00 €
SKU:

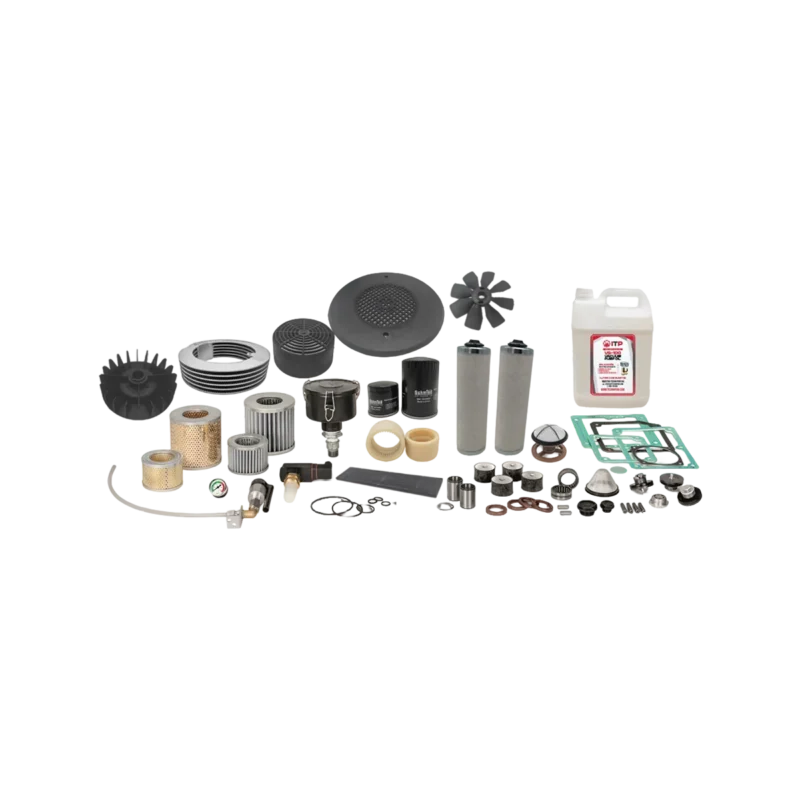

RSOLPRVVP
